QtCore Case study

Qt is a cross-platform application development framework, widely used for the development of GUI programs ,and also used for developing non-GUI programs such as console tools and servers.
Qt consists of several modules, and each one rely on QtCore, this module contains all basic classes like Containers, String, Smart Pointer, Multithreading, Localization and other functionalities.

Let's discover with CppDepend the QtCore module.

Namespace Layering

Modelizing components of a code base with namespaces is a better idea to gain clear architecture, but in the C++ world this logical artifact is not enough used, a few C++ open source projects use namespace layering to modularize the code base.
Not using namespaces not implies that a library is bad designed,it's a choice of library designers and each project is specific, but generally using namespaces improve the design quality.
QtCore provides many classes that can be isolated in namespaces like Containers, IO,Multithreading and so one, and maybe for historical reason the namespaces are not enough used.

CppDepend provides DSM graph, and we can triangularize this matrix to focus under red borders highly dependency cycle.

Which paradigm mostly used?

C++ is a multi paradigm language and it's very important to know for a defined project which paradigm is used.
Lets search for global functions:


What about classes and structures?

SELECT TYPES WHERE (IsClass OR IsStructure ) AND !IsTemplate AND ! IsInTierProject AND !IsGlobal

And concerning generic paradigm:

SELECT TYPES WHERE IsTemplate AND ! IsInTierProject

QtCore use all the paradigms proposed by C++, doing that is interesting to exploit the advantages of each one, but in such case we have to focus more on design to avoid complicated module.


For POO paradigm the inheritance can be very used to exploit polymorphism concept, but overusing it can implies a high coupling between classes, so the inheritance must be used only if it's necessary.


We can observe that inheritance is not overused in this module.
And what about multiple inheritance? using it increase complexity ,and we have to use it carefully.
Let’s search for class with many base classes.


Only 4 classes derive from more than one class.

Low coupling and Abstractness

low coupling is desirable because a change in one area of an application will require less changes throughout the entire application. In the long run, this could alleviate a lot of time, effort, and cost associated with modifying and adding new features to an application.
Using abstract classes can improve the low coupling and we can evaluate the abstractness of a defined module by the following metric :

A = Na / Nc

* A = abstractness of a module Zero is a completely concrete module. One is a completely abstract module. * Na = number of abstract classes in the module. * Nc = number of concrete classes in the module.
For QtCore the Abstractness is equal to 0.01806589 , so this module is more concrete than abstract.

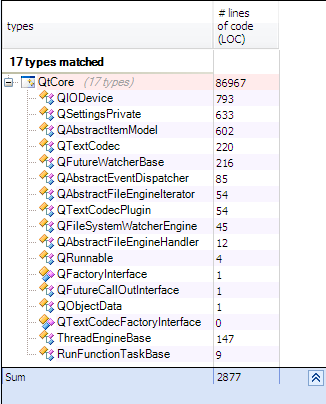

Let's search for abstract classes:


Only a few classes are abstract, we can consider that's normal for this module because it provides many technical utility classes and for such module it must be more concrete than abstract.

Type Cohesion

The single responsibility principle states that a class should have more than one reason to change. Such a class is said to be cohesive. A high LCOM value generally pinpoints a poorly cohesive class. There are several LCOM metrics. The LCOM takes its values in the range [0-1]. The LCOMHS (HS stands for Henderson-Sellers) takes its values in the range [0-2]. Note that the LCOMHS metric is often considered as more efficient to detect non-cohesive types. LCOMHS value higher than 1 should be considered alarming.


Only very few classes are considered as no cohesive.


QObject is the heart of the Qt object model,it provides a useful mechanism to facilitate the development,The central feature in this model is a very powerful mechanism for seamless object communication called signal and slot.
Another useful mechanism is the fact that QObjects organize themselves in object trees. When you create a QObject with another object as parent, the object will automatically do an insertChild() on the parent and thus show up in the parent's children() list.

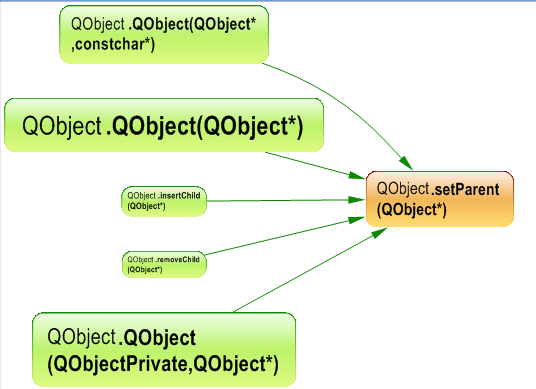

this following dependency graph shows that for each creation of QObject, the setParent is invoked.

Another intersting mechanism concern the dynamic casting, when we execute the following CQL query:

SELECT METHODS WHERE IsDirectlyUsing "Keywords.dynamic_cast".

The result is empty, so what happen QtCore never use dynamic casting mechanism?
The qobject_cast() function behaves similarly to the standard C++ dynamic_cast, with the advantages that it doesn't require RTTI support and it works across dynamic library boundaries.

which classes of QtCore are derived from QObject?



Basically, an object is immutable if its state doesn’t change once the object has been created. Consequently, a class is immutable if its instances are immutable. There is one killer argument for using immutable objects: It dramatically simplifies concurrent programming. Think about it, why does writing proper multithreaded programming is a hard task? Because it is hard to synchronize threads accesses to resources (objects or others OS things). Why it is hard to synchronize these accesses? Because it is hard to guarantee that there won’t be race conditions between the multiple write accesses and read accesses done by multiple threads on multiple objects. What if there are no more write accesses? In other words, what if the state of the objects threads are accessing, doesn’t change? There is no more need for synchronization!

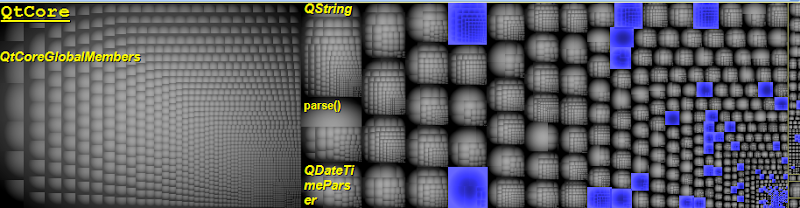

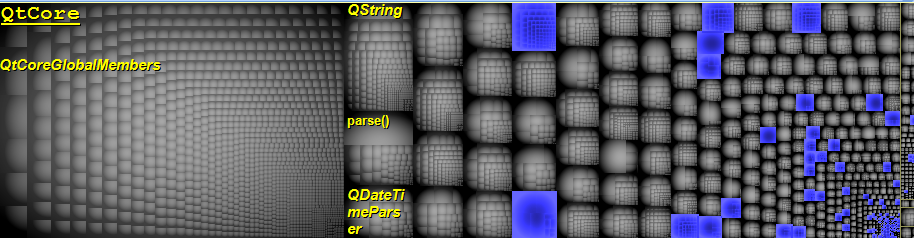

Which classes of QtCore are immutable?


243 classes are immutable.

Most used Types

TypeRank is a metric that can be used to know the popularity of a type.

Which classes are most used?


QString is the most used one, we can search for all classes that use it.

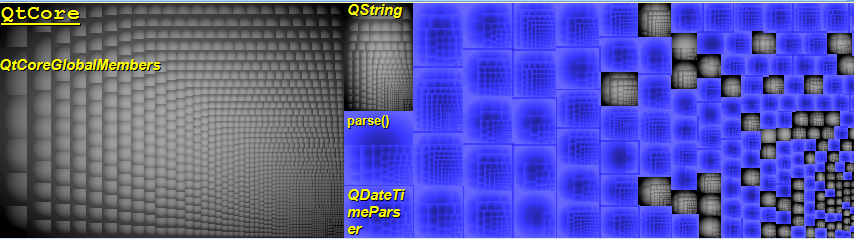

SELECT TYPES WHERE IsDirectlyUsing "QString"

Almost the entire module use it, but the recurent question is why not using std::string, and why using a specific class and not standard one?
Maybe there are many reasons, and one reason is that the C++ standard was finalized late in 1998, it then took some time until all systems actually provided a correct C++ library.

Decoupling data and behavior

Qt use many classes to store data, their names end by "Private".

SELECT TYPES WHERE NameLike "Private$"

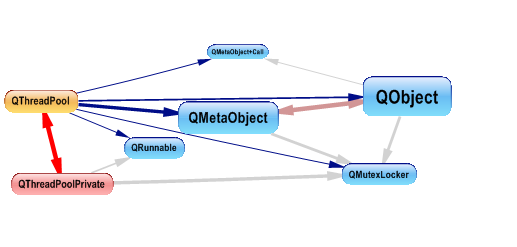

This pattern dissociate data and behavior, for example the following dependency graph shows the relation between QThreadPool and QThreadPoolPrivate.


Localization is the process of adapting to local conventions such as date and time presentations, and QtCore provides QLocale class for this functionality.
Let's search for classes using it:

SELECT TYPES WHERE IsDirectlyUsing "QLocale"

We can observe that Date,Time,String and others use it to localize their data.

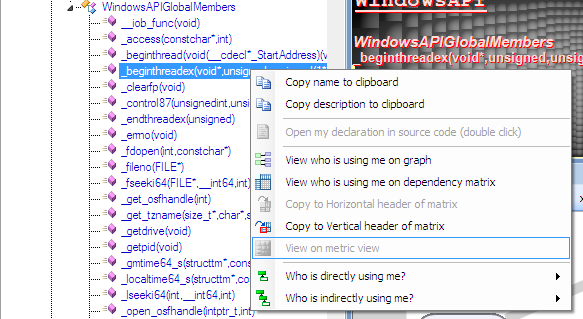

QtCore provides also all classes needed for multithreading. We can search for classes responsible of creation of threads, for that we can choose the _beginthreadex function in WindowsAPIGlobalMembers, right click and choose the option "Who is directly using me".

And there's the result:

So the creation of thread is centralized in QThread class.

Smart Pointer

QtCore provides many classes to manage Smart Pointer, each one can be used for a specific context.


QtCore is the base module of Qt, it provides many useful classes for many needs, it's well designed and easy to understand and use.
